Solo
Solo titanium implant HEX 2.43 "MULTI-LOCK"

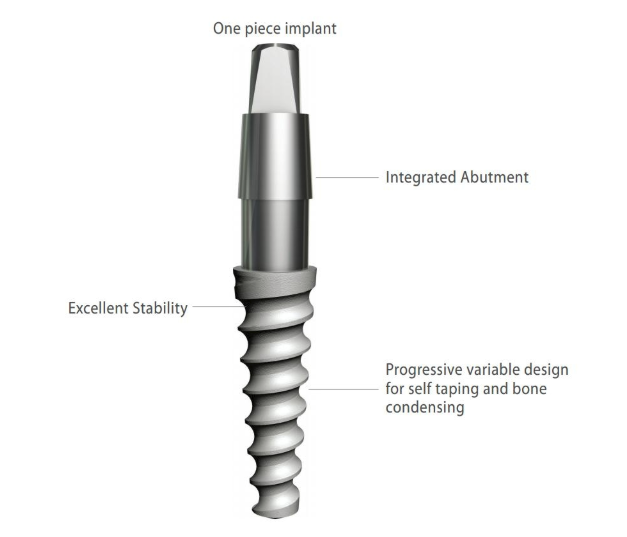

The Solo implant is a one piece titanium implant with an integrated abutment which designed for one stage surgical procedures.
Solo implant is specially designed for narrow ridges to maximize prosthetic demands. Its specific design includes compressed threads for immediate loading.
| ∅ 2.4 mmd* | ∅ 3.0 mmd | ∅ 3.3 mmd | ∅ 3.75 mmd | ∅ 4.2 mmd | ∅ 5 mmd | |
|---|---|---|---|---|---|---|
| Cat No. | Cat No. | Cat No. | Cat No. | Cat No. | Cat No. | |
| 10 mml | 141024 | 141030 | 141033 | 141037 | 141042 | 141050 |
| 11.5 mml | 141124 | 141130 | 141133 | 141137 | 141142 | 141150 |
| 13 mml | 141324 | 141330 | 141333 | 141337 | 141342 | 141350 |
| 16 mml | 141624 | 141630 | 141633 | 141637 | 141642 | 141650 |
Use only in special indication. Use always bone D1, D2.
