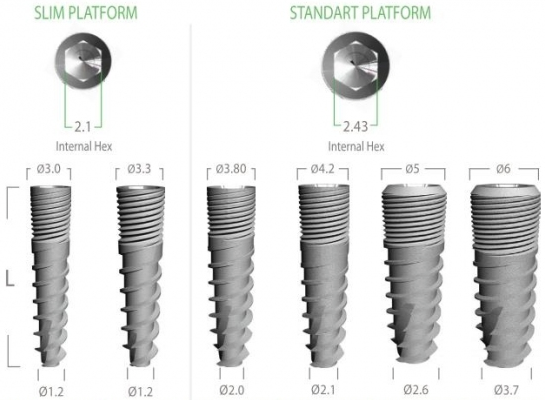

Unique titanium implant HEX 2.43 "MULTI-LOCK"
The Unique implant is a diverse tapered self-drilling and tapping titanium screw with internal hexagon index of 2.43 mmd. The Progressive change of its unique carvings and variable multi thread design offers an excellent initial fixation of the implant and prevents undesired bone loss around it.
The special internal "key-lock" system provides an excellend fixation between abutment and implant and prevents any micro movement of the inserted abutment in all dimensions.
The design of the internal hexagon 2.43 mm supports the abutment's fixation and prevents its rotation.
Suitable for all bone types. Recommended in bone type D-2,3,4. Implantation Areas/Indications - all parts of the maxilla and mandible.
| ∅ 3.75 mmd | ∅ 4.2 mmd | ∅ 5 mmd | ∅ 6 mmd | |
|---|---|---|---|---|
| Cat No. | Cat No. | Cat No. | Cat No. | |
| 8 mml | 120837 | 120842 | 120850 | 120860 |
| 10 mml | 121037 | 121042 | 121050 | 121060 |
| 11.5 mml | 121137 | 121142 | 121150 | 121160 |
| 13 mml | 121337 | 121342 | 121350 | 121360 |
| 16 mml | 121637 | 121642 | 121650 | 121660 |
| 18 mml | 121837 | 121842 |
Standart drilling - use surgical cylindrical drills

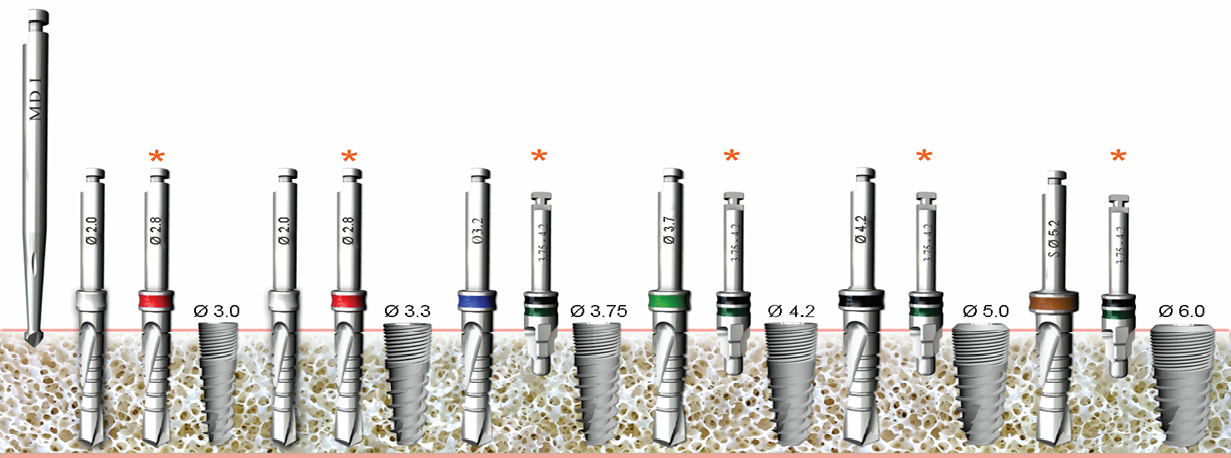

Special drilling use surgical conical set drills
Unique titanium implant HEX 2.43 "MULTI-LOCK"
The Unique implant is a diverse tapered self-drilling and tapping titanium screw with internal hexagon index of 2.43 mmd. The Progressive change of its unique carvings and variable multi thread design offers an excellent initial fixation of the implant and prevents undesired bone loss around it.
The special internal "key-lock" system provides an excellend fixation between abutment and implant and prevents any micro movement of the inserted abutment in all dimensions.
The design of the internal hexagon 2.43 mm supports the abutment's fixation and prevents its rotation.
Suitable for all bone types. Recommended in bone type D-2,3,4. Implantation Areas/Indications - all parts of the maxilla and mandible.
|
|
|
|
|
| ∅ 3.75 mmd | ∅ 4.2 mmd | ∅ 5 mmd | ∅ 6 mmd | |
|---|---|---|---|---|
| Cat No. | Cat No. | Cat No. | Cat No. | |
| 5 mml | 120537 | 120542 | 120550 | 120560 |
|
|
|
|
|
| ∅ 3.75 mmd | ∅ 4.2 mmd | ∅ 5 mmd | ∅ 6 mmd | |
|---|---|---|---|---|
| Cat No. | Cat No. | Cat No. | Cat No. | |
| 6 mml | 120637 | 120642 | 120650 | 120660 |
|
|
|
|
|
| ∅ 3.75 mmd | ∅ 4.2 mmd | ∅ 5 mmd | ∅ 6 mmd | |
|---|---|---|---|---|
| Cat No. | Cat No. | Cat No. | Cat No. | |
| 7 mml | 120737 | 120742 | 120750 | 120760 |

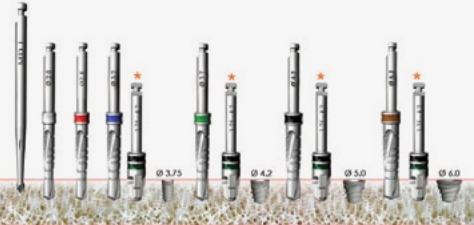

Use as finishing drill in bone type D1 - D2.
Slim Platform - Unique Titanium Implant
| Length | ∅ 3.0 mmd | ∅ 3.3 mmd |
|---|---|---|
| Cat No. | Cat No. | |
| 8 mml | 120830 | 120833 |
| 10 mml | 121030 | 121033 |
| 11.5 mml | 121130 | 121133 |
| 13 mml | 121330 | 121333 |
| 16 mml | 121630 | 121633 |
